SMALL ANGLE SOFT CLOSE ALUMINUM DOORFRAME HINGE (STOPPABLE TWO-WAY)
Opening angle: 105°

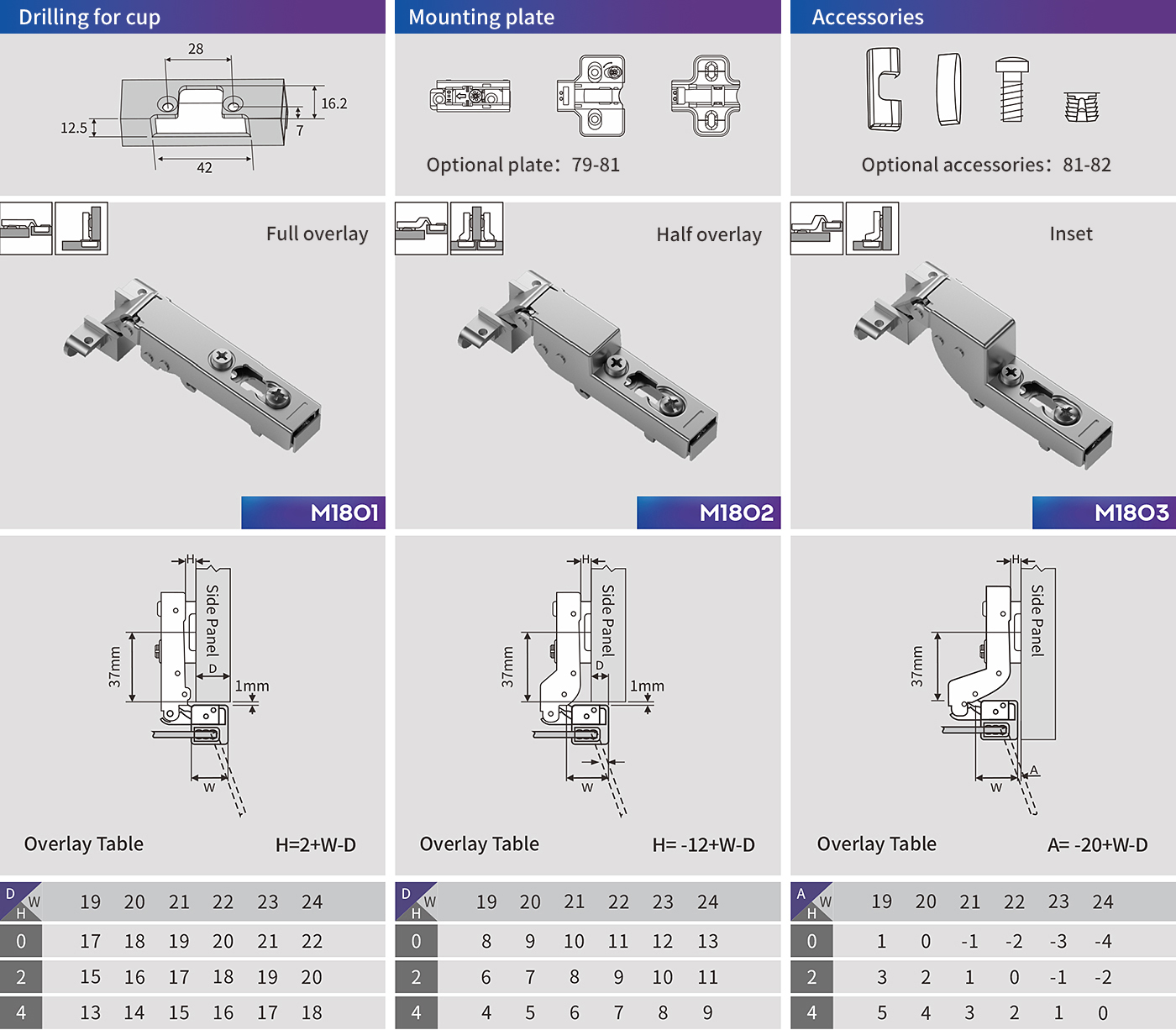

Aluminum frame hinge cup drilling size: 28mm
Aluminum frame door thickness: 19-24mm
Main material: Cold rolled steel plate
Finish: Nickel, black nickel, titanium
Small angle buffering: Less than 10 degrees
Optional: One-way / Stoppable two-way
Aluminum frame hinge cup drilling size: 28mm
Aluminum frame door thickness: 19-24mm
Main material: Cold rolled steel plate
Finish: Nickel, black nickel, titanium
Small angle buffering: Less than 10 degrees
Optional: One-way / Stoppable two-way
|
|
|
||
| Swiss SGS | German TUV | Korean KS |
OEM technical
Support
Loading
capacity 35KG
Monthly capacity
1000000 sets
50000 times
cycle test
Quiet and
smooth sliding
Product Details
