SMALL ANGLE SNAP-ON SOFT CLOSE HINGE (TWO-WAY)
Opening angle: 105 °
Depth of hinge cup: 11.5mm
Diameter of hinge cup: φ 35mm
Applicable door thickness: 14-22mm
Main material: Cold rolled steel plate
Finish: Nickel, black nickel, titanium
Small angle buffering: Less than 10 degrees
Optional: One-way / Stoppable two-way / Two-way
Depth of hinge cup: 11.5mm
Diameter of hinge cup: φ 35mm
Applicable door thickness: 14-22mm
Main material: Cold rolled steel plate
Finish: Nickel, black nickel, titanium
Small angle buffering: Less than 10 degrees
Optional: One-way / Stoppable two-way / Two-way
OEM technical
Support
Loading
capacity 35KG
Monthly capacity
1000000 sets
50000 times
cycle test
Quiet and
smooth sliding

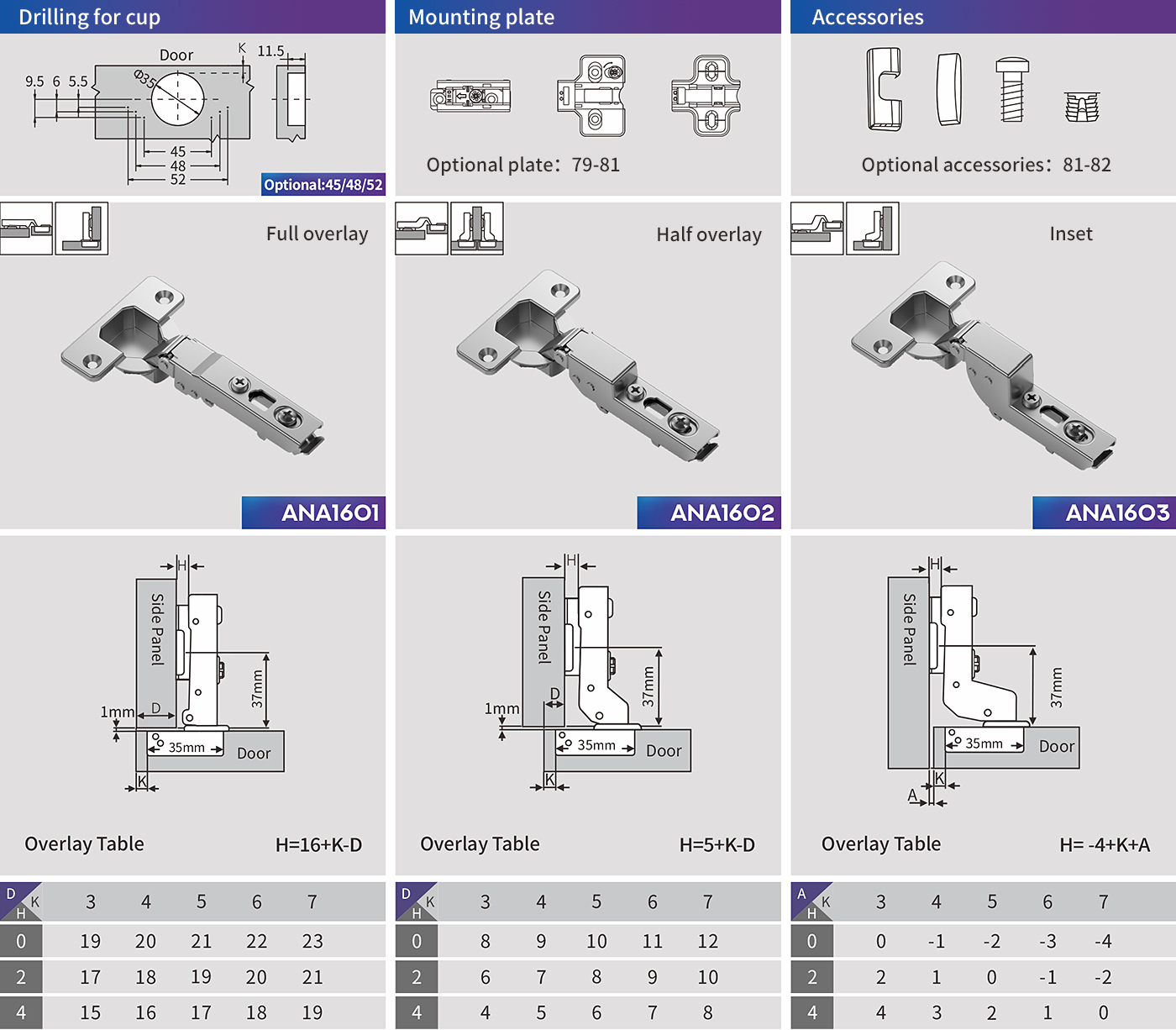

Product Details
